Section 6.5

Air Tools

Air Tool Impact Driver Set

CT4756

Impact Driver Set - 6pc

6pc Impact Driver Set for use with Air Hammer Guns
Small Fastener Remover with 5/16in. Hex Impact Bits.
Ph1 | Ph2 | Ph3 | Ph4 and 8mm slotted bit .
A 19mm or 3/4in. open end spanner can be used to
turn the bit holder while impacting the fastener.
Works faster than hand impact tools.
Especially useful for removing seized brake rotor screws.

Air Tool Impact Driver Set
t Click picture for more information

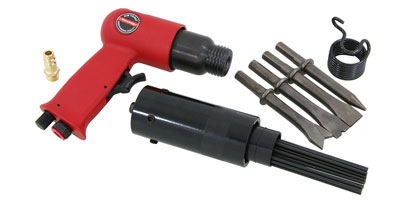

Air Hammer and Descaler

CT0676

Air Hammer / Descaler

Air Hammer and Descaler
Air Hammer : 6in. / 150mm
Needle Descaler Attachment
Blows per minute : 4500
Stroke : 1-5/8in. / 42mm
Air Inlet : 1/4in. BSP / Hose : 3/8in.
Air Pressure : 6.3bar
Air consumption : 5cfm
Bore diameter : 3/4in.

Air Hammer and Descaler
t Click picture for more information

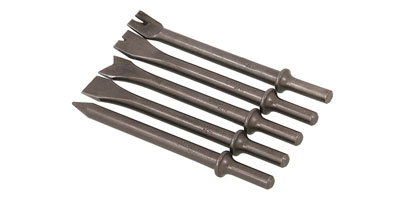

Air Hammer Accessory Set

CT4142

Air Hammer Accessory Set - 5pc

5pc Air Hammer Accessory Set
Edging Tool
Straight chisel
Spot Weld Cutter
Taper Punch
Tail Pipe Cutter
For use with Air Hammers like CT0676

Air Hammer Accessory Set
t Click picture for more information

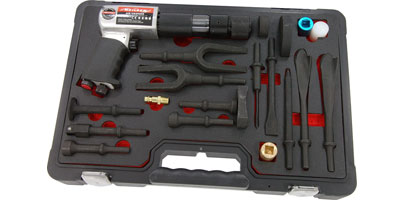

Air Hammer and Accessory Set

CT6415

Air Hammer Chisel Set - 19pc

19pc Air Hammer Chisel Set
Air Hammer with a wide range of accessories for multiple jobs.
Max. Operating Pressure : 6.38 bar
Avg. Air Consumption : 4 cfm
Piston Stroke : 3 / 3 / 4in.
Blows Per Minute : 2200 bpm
Bore Diameter : 3/4in.
Air Inlet : 1/4in.
Ideal problem solver for opening rusted screw connections
and for loosening components.

Air Hammer and Accessory Set
t Click picture for more information

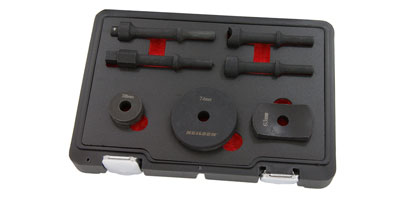

Air Hammer Chisel Adaptor Set

CT6413

Air Hammer Chisel Adaptor Set - 7pc

7pc Air Impact Chisel Adaptor Set
Ideal for removing rust or loosening rusty bolts and components.
Chisels have different profiles to facilitate
dismantling and protecting the surface of components.
Suitable for ball joints, bearings, bushings, sleeves etc.
For all air chisels with 10mm 6pt or round adaptor.
Material : Chrome-Molybdenum.

Air Hammer Chisel Adaptor Set
t Click picture for more information

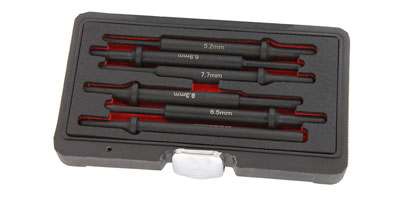

Air Hammer Drift Set

CT6414

Air Hammer Drift Set - 6pc

6pc Air Hammer Drift Set
Extra-long air impact drift set
For the extraction of shafts, studs and screws stuck in deep holes.
Sizes : 5.2 | 6.5 | 6.9 | 7.7 | 9.3 | 12.7mm.
These are the most frequently used sizes.
Round shaft : 10mm diameter

Air Hammer Drift Set
t Click picture for more information

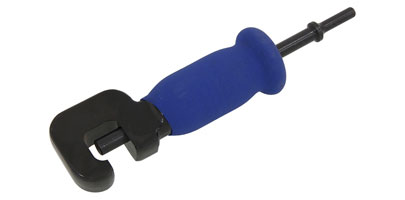

Air Hammer Nut Removal Tool

CT4422

Air Hammer Nut Removal Tool

Air Hammer Nut Removal Tool
Attachment for dislodging stubborn nuts.
Length : 190mm
Width : 65mm
Maximum nut size : 24mm

Air Hammer Nut Removal Tool
t Click picture for more information

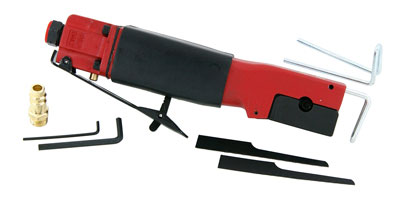

Air Body Saw

CT1406

Air Body Saw

Air Body Saw
Strokes per minute : 8500rpm
Cutting capacity : 16 gauge steel
Air Pressure : 6.3bar
Air Consumption : 4cfm
Air Inlet : 1/4in. / Air Hose : 3/8in.
2 Saw blades 18T and 24T included

Air Body Saw
t Click picture for more information

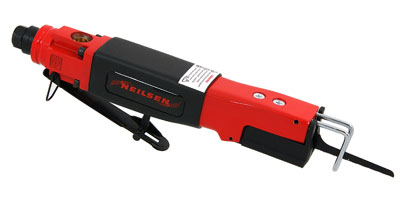

Air Body Saw

CT2281

Air Body Saw

Air Body Saw
Aluminium Body
Strokes P/M : 9000
Air consumption : 12scfm
Weight : 0.62kg
Length : 265mm
Air inlet : 1/4in.
Hose size : 3/8in.
Rear exhaust

Air Body Saw
t Click picture for more information

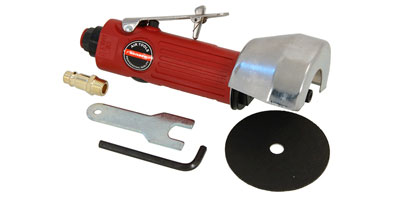

Air Cut-off Tool

CT0678

Air Cut-off Tool - 75mm

Air Cut-off Tool
Cutting Disc : 3in. / 75mm
Max. Speed : 20000rpm
Max. Operating Pressure : 6.2bar
Avg. Air Consumption : 5.5cfm
Air Inlet : 1/4in. BSP
Rear exhaust.

Air Cut-off Tool
t Click picture for more information

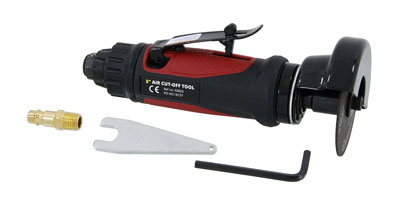

Air Cut-off Tool

CT2278

Air Cut-off Tool - 75mm

Air Cut-off Tool
Cutting Disc : 3in. / 75mm
Composite Body
Free Speed : 18000rpm
Max. Air Pressure : 6.3bar | 90psi
Air Consumption : 4cfm
Air inlet : 1/4in.
Hose Size : 3/8in.

Air Cut-off Tool
t Click picture for more information

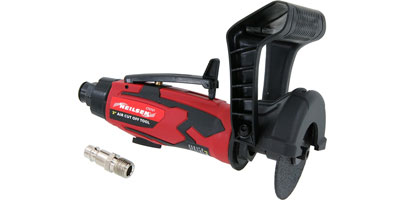

Air Cut-off Tool

CT5721

Air Cut-off Tool - 75mm

Air Cut-off Tool
Cutting Disc : 3in. / 75mm
Composite Body
Free Speed : 18000rpm
Max. Air Pressure : 8bar
Air Consumption : 6cfm
Air inlet : 1/4in.
Hose Size : 3/8in.

Air Cut-off Tool
t Click picture for more information

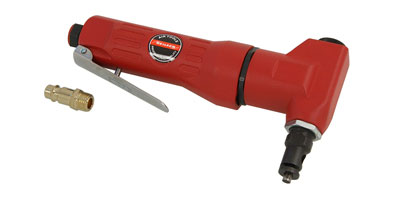

Air Nibbler

CT1405

Air Nibbler

Air Nibbler
Max. Cutting Depth : 1.5mm
Cutting Speed : 3500rpm
Air inlet : 1/4in. / Air hose size : 3/8in.
Air pressure : 90psi / 6.2bar
Suitable for Aluminium and other metals up to 18 gauge rolled steel

Air Nibbler
t Click picture for more information

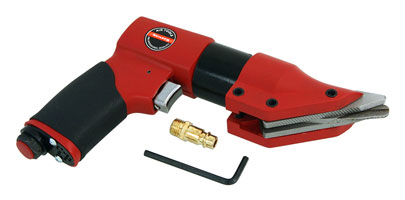

Air Shears

CT1076

Air Metal Shears

Air Metal Shears
Speed : 2100rpm
Air Inlet : 1/4in. BSP / Air hose : 3/8in.
Steel blades cut through 18 gauge 1.2mm Sheet Metal / Aluminium / Plastic
Straight and contour cuts with minimum edge distortion
Handle exhaust

Air Shears
t Click picture for more information

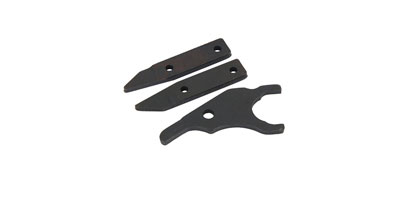

Air Shear Blades

CT3106

Air Shear Blades

Air Shear Blades for CT1076

Air Shear Blades
t Click picture for more information

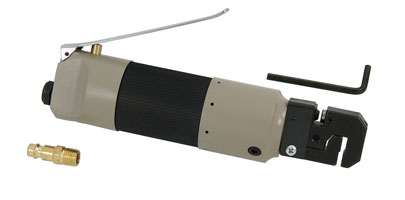

Air Punch / Flange Tool

CT5271

Air Punch / Flange Tool

Air Punch / Flange Tool
Works as both an air punch and air flange for auto body repair.
The air flange has a versatile head that rotates 360 degrees
to easily crimp flanges or lap joint sheets and pipes.
The punch can create 3/16in. holes for fastening and welding.
Air consumption : 4 cfm
Cutting capacity : 16 gauge / 5mm.
Working pressure : 90 psi
Air inlet size : 1/4in. NPT / F

Air Punch / Flange Tool
t Click picture for more information

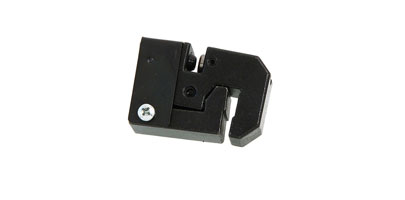

Air Punch / Flange Tool - Head

CT5272

Air Punch / Flange Tool - Head

Spare Head for CT5271
Air Punch / Flange Tool

Air Punch / Flange Tool - Head
t Click picture for more information
Mini Air Angle Grinder

CT5470

Air Grinder - 2in.

50mm Air Mini Angle Grinder with Rear Exhaust.
Includes 2in. / 50mm Cutting and Grinding Discs plus Wrenches.
Operating pressure : 6.3 Bar / 90psi
Free speed : 22000rpm
Air consumption : 6.5cfm
Spindle size : M6
Air inlet : 1/4in.
Ideal for grinding in tight areas i.e weld smoothing
bumper repairs and cutting in hard to reach areas.
Suitable for professional workshop use

Mini Air Angle Grinder
t Click picture for more information
Air Angle Grinder

CT1083

Air Grinder - 4in.

4in. / 100mm Air Angle Grinder
Air consumption - 6cfm
Max air pressure - 90psi
Free speed - 1100rpm
BSP air inlet - 1/4in.
Light weight compact design

Air Angle Grinder
t Click picture for more information
Air Die Grinder

CT1084

Air Grinder - 4in.

1/4in. / 6mm Air Die Grinder
Free Speed : 2200rpm
Max Air pressure : 0.65MPa
Air consumption : 5cfm
Hose size : 3/8in.
BSP Air Inlet : 1/4in.

Air Die Grinder
t Click picture for more information
Air Die Grinder

CT1085

Air Grinder - 90 degree

Air Angle Die Grinder
1/4in. / 6mm - 90 Degree
Air Pressure : 6.2bar
Air consumption : 3cfm <
Free Speed : 20000rpm
Air Inlet : 1/4in. BSP
Hose size : 3/8in

Air Die Grinder
t Click picture for more information
Air Die Grinder

CT2279

Air Grinder - 1/4in.

1/4in. Composite Body Air Die Grinder
Collet Size : 1/4in. / 6mm
Free Speed : 20000 rpm
Air Pressure 6.3bar / 90psi
Air Consumption : 4cfm
Air Inlet : 1/4in. / Hose Size : 1/4in.

Air Die Grinder
t Click picture for more information
Air Die Grinder Kit with Grinding Stones

CT1092

Air Grinder Kit - 15pc

15pc Air Die Grinder Kit - 1/8in. | 1/4in.
Max Air Pressure : 0.65 Mpa
No Load Speed : 2200rpm
Air Inlet : 1/4in. BSP
Hose Size : 3/8in.
With Accessories and mounted grinding Stones

Air Die Grinder Kit with Grinding Stones
t Click picture for more information
90 Degree Air Die Grinder Kit

CT0698

Air Grinder Kit - 15pc

15pc 1/8 | 1/4in. Air Angle Grinder Kit
90 degree
Free Speed : 2000rpm
Air Inlet : 1/4in. BSP
Hose size : 3/8in.
with Accessories

90 Degree Air Die Grinder Kit
t Click picture for more information
Air Micro Grinder Kit

CT3073

Air Micro Grinder Kit

Air Micro Grinder Kit
Includes 10 grinder heads and built-in speed regulator for precise work
1.5M Air Hose with protective sleeve
Working Pressure - 85 - 115psi / 5.8 - 8.0 bar
Average Air Consumption - 2cfm

Air Micro Grinder Kit
t Click picture for more information

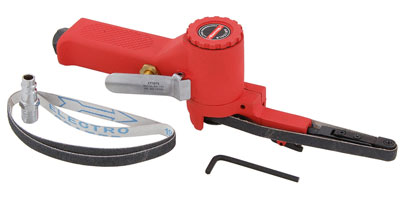

10mm Belt Air Sander

CT1075

Air Belt Sander

10mm Air Belt Sander
Sanding Belt : 10 x 330mm
Free speed : 1600rpm
Air Pressure 90psi
Air Consumption : 6 cfm
Air Inlet : 1/4in. BSP / Air hose : 3/8in.
Supplied with 3 Sanding Belts : 60. 80. 120 grit

10mm Belt Air Sander
t Click picture for more information

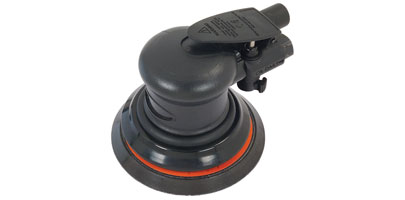

Air Sander

CT2280

Air Sander - 5 and 6in.

Air Sander
Composite Body with Dual action
Pad size - 125mm or 150mm
Free speed - 10500rpm
Pressure - 6.2bar
Weight - 0.85kg
Length - 200mm
Air inlet - 1/4in.
Hose Size - 3/8in.

Air Sander
t Click picture for more information

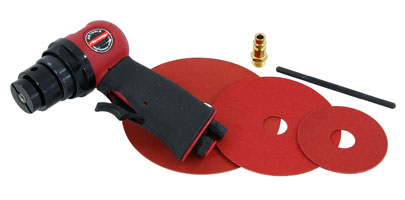

Air Sander

CT1077

Air Sander - 5in.

125mm High Speed Air Sander
Max. Speed :16000rpm
Max. Operating Pressure : 6.2bar / 90psi
Avg. Air Consumption : 4cfm
Air Inlet : 1/4in. BSP
3 Fibre backing pads : 75 | 100 | 125mm
Built in speed regulator with side exhaust.
For light sanding jobs like feather edging rust removal.

Air Sander
t Click picture for more information

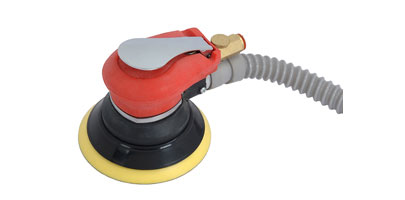

Air Sander

CT1912

Air Sander - 5in.

125mm Random Orbit Sander
Free speed - 9000rpm
Air inlet - 1/4in. | Air hose - 3/8in.
Sanding Pads - 5in. / 125mm
Fitted with 5in. 6 hole Velcro pad
Rear Exhaust

Air Sander
t Click picture for more information

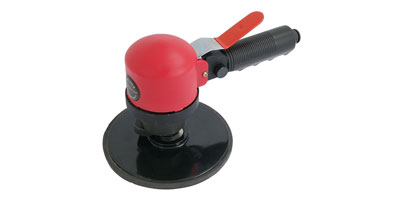

Air Sander

CT0869

Air Sander - 6in.

150mm Air Sander
Free speed - 10000rpm
Air inlet - 1/4in.
Air hose - 3/8in.
Built in regulator for positive speed control
Side exhaust

Air Sander
t Click picture for more information

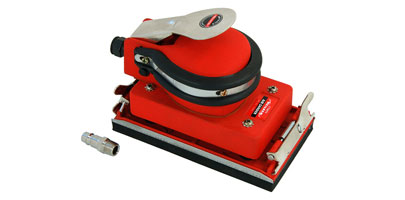

Air Sander

CT0879

Air Sander - 170 x 93mm

Wet or Dry Air Sander
Pad Size : 170 x 93mm
Air Pressure 6.0bar
Free Speed : 8000rpm
Air Inlet :1/4in. / Air Hose : 3/8in.
Ideal for Metal / Wood and Plastic
Locking Clamps hold sand paper firmly in position.
Contoured Palm Grip for one hand operation.
Ideal for Metal / Wood and Plastic.

Air Sander
t Click picture for more information

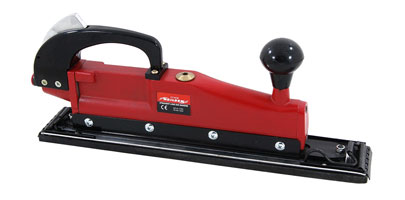

Air Sander

CT1078

Air Sander / Straight Line

Straight Line Air Sander
Pad : 64 x 400mm
Needle bearings for precise smooth performance
Free Speed : 2500rpm
Max Air Pressure : 90psi
Air Inlet : 1/4in. BSP / Hose : 3/4in.

Air Sander
t Click picture for more information

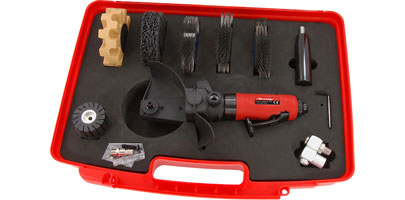

Air Surface Blasting Kit

CT6614

Air Surface Blasting Kit

Surface Blaster Kit
Air Blaster Tool with Auxiliary handle and Hub
360 degree Swivel Connector
Air Adaptor
3 Wire Wheels
Stripping Wheel
Eraser Wheel
Suitable for smooth surfaces on vehicles
and other surfaces - aluminium, metal, glass and plastic.
For professional removal of rust, adhesive residues, paints and foils.

Air Surface Blasting Kit
t Click picture for more information

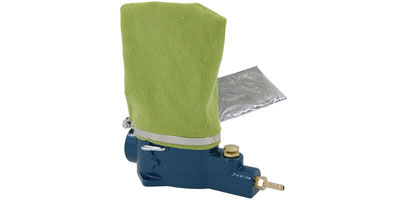

Pneumatic Spark Plug Cleaner

CT5826

Air Spark Plug Cleaner

Pneumatic Spark Plug Cleaner
Supplied with a bag of silicon carbide.
For removing carbon residues on spark plugs.
Can be fitted to a workbench.
Air consumption : 218 l/min
Operating pressure : 6.2bar / 90psi
Compressed air connection : 1/4in.

Pneumatic Spark Plug Cleaner
t Click picture for more information

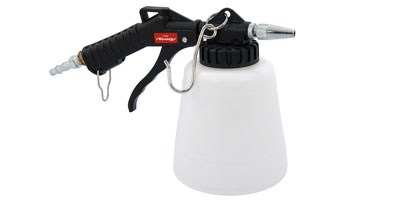

Portable Soda Blasting Gun

CT5263

Portable Soda Blasting Gun

Soda Blasting Gun
Capacity : 1000ml
Operating Pressure : 6.3 - 8.2 bar
Air consumption : 57L/min
Air Inlet : 1/4in.bsp
Suitable for automotive use in removing
paint / mould / carbon / grease and rust.
Use with environmentally friendly soda blasting agents.
Particularly useful where less aggressive cleaning is required

Portable Soda Blasting Gun
t Click picture for more information

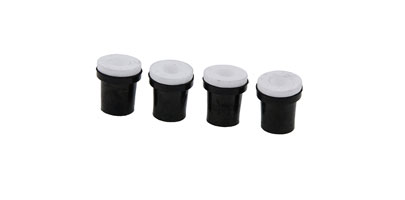

Sandblaster Nozzle Set

CT1803

Sandblaster Nozzle Set - 4pc

4 Ceramic Nozzles for Sandblasters
Sizes : 2.0 | 2.5 | 3.0 | 3.5mm
For efficient surface sandblasting
Suitable for 10 Gallon Sandblaster - CT1282

Sandblaster Nozzle Set
t Click picture for more information

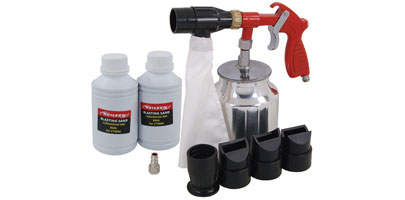

Sandblaster

CT4694

Sandblaster Kit

Air Sandblaster Gun Kit
With Surface | Inside / Outside Corner | Panel Spot Nozzles
2 x 850g bottles of corundum 60 blasting sand
Working pressure : 6 - 8 Bar / 90 -116psi
Average air consumption : 6.5cfm
Air inlet : 1/4in. BSP
Used for removal of rust and excessive dirt or paint.
Suitable for use with corundum - grain size of 46 to 100.
Ideal for automotive body shop applications on all metallic surfaces.

Sandblaster
t Click picture for more information

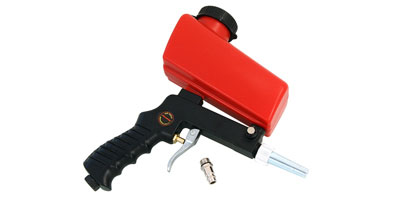

Pneumatic Sandblasting Gun

CT5267

Sand Blasting Gun

Pneumatic Sand Blasting Gun
Air Inlet Size : 1/4in.
Pot Capacity : 21lb
Air Consumption : 7cfm
Air Pressure : 90psi
Nozzle Diameter : 6.5mm

Pneumatic Sandblasting Gun
t Click picture for more information

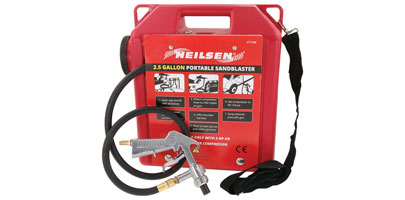

Portable Sandblaster with Shoulder Strap

CT1109

Sandblaster - Portable 2.5 Gallon

2.5 Gallon Portable Sand Blaster
Handles glass beads / sand and aluminium oxide
Compressor Requirement : 3Hp / 125psi
Seamless polyethylene hopper : 2.5 gallon
Rubber Hose : 5ft
Heavy duty sandblast gun with hardened steel nozzle

Portable Sandblaster with Shoulder Strap
t Click picture for more information

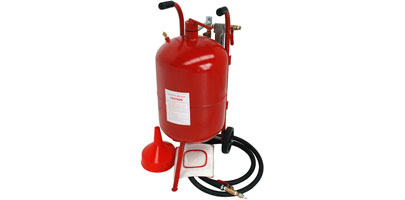

Sandblaster

CT1282

Sandblaster - 10g

10 gallon Sandblaster
With 2.5M Hose and 31cm Tank
Equipped with Nozzle Shut-Off Valve and Pressure Gauge
Includes 4 Assorted Ceramic Nozzles
Spare Nozzles - CT1803

Sandblaster
t Click picture for more information

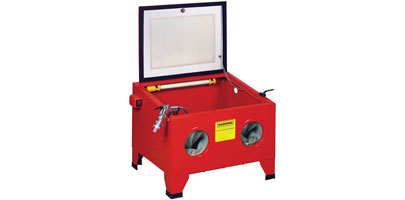

Sandblasting Cabinet - 90L

CT5642

Sandblasting Cabinet - 90L

90L Sand Blasting Cabinet
Steel cabinet with viewing screen and internal illumination.
Fitted with Blasting Gun
Suitable for glass beads / silicon carbide / aluminium oxide and silica sand only.
Air Compressor Delivery : 60 - 120psi / 15 - 25cfm
Max. Operation Pressure : 110psi
Nozzle Size : 4 / 5 / 6 / 7mm
Working Space : 56 x 46 x 30.5cm
Ideal for workshop and body shop cleaning applications

Sandblasting Cabinet - 90L
t Click picture for more information

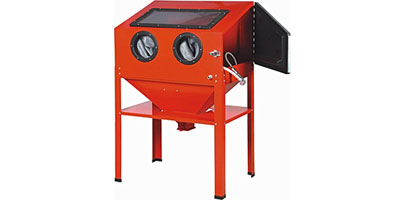

Sandblasting Cabinet - 220L

CT5643

Sandblasting Cabinet - 220L

220L Sand Blasting Cabinet
Steel cabinet with viewing screen and internal illumination.
Fitted with Blasting Gun
Suitable for glass beads / silicon carbide / aluminium oxide and silica sand only.
Air Compressor Delivery : 60 - 120psi / 15 - 25cfm
Max. Operation Pressure : 110psi
Nozzle Size : 4 / 5 / 6 / 7mm
Working Space : 84 x 55 x 38cm
Ideal for workshop and body shop cleaning applications.

Sandblasting Cabinet - 220L
t Click picture for more information

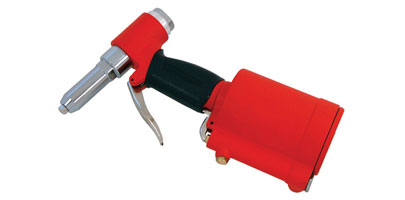

Air Hydraulic Riveter

CT0057

Air Hydraulic Riveter

Air Hydraulic Riveter
Blind Rivet Setting Capacity : 3/16 | 5/32 | 1/8 | 3/32in.
Traction Power : 720 kg
Stroke Length : 9/16in. | 14mm
Air Inlet : 1/4in.
Air Hose : 3/8in.
Air Consumption : 0.03 Cfm | 0.86 L/min 0.86
Working Pressure : 90psi.
Weight : 6.3kg

Air Hydraulic Riveter
t Click picture for more information

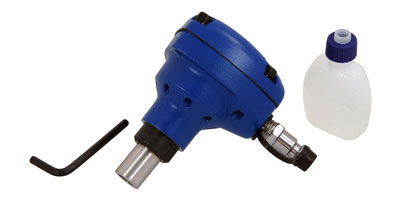

Air Palm Nailer

CT2306

Air Palm Nailer

Air Palm Nailer
Operation pressure : 5 - 7bar
Nail Length : 25 to 90mm
Nail capacity : 3 - 11mm
Air inlet : 1/4in. NPT

Air Palm Nailer
t Click picture for more information
20 Volt Cordless Nailer / Staple Gun

CT5958

Cordless Nailer / Staple Gun - 20V

20V Li-ion Cordless Nailer / Staple Gun
with Brushless Motor
Includes 20V Battery and 4.0Ah Fast Charger.
Rated Voltage : 20V DC | 105W
Maximum number of operations per minute : 100min
Max. Magazine Capacity : up to 100 Nails / Staples
Max. Length : 40 - 50mm 18 Gauge
Charger Input Voltage: 230V AC | 50 / 60Hz
Output voltage: 21V DC 4.0Ah
Charging time: 1H

20 Volt Cordless Nailer / Staple Gun
t Click picture for more information
Air Staple or Nail Gun

CT3320

Air Nail Gun and Stapler

Pneumatic Staple Gun
With Oil and Hex Keys.
Adjustable control for Nail Depth.
Lightweight Die Cast Body with 360 degree adjustable exhaust deflector.
One piece drive blade Non-marring Barrel end with Rubber grip.
Safe for Touch and Strike Systems.

Air Staple or Nail Gun
t Click picture for more information
Nail Gun and Stapler

CT0058

Air Nail Gun and Stapler

Pneumatic Staple Gun
2 in 1 Combination Air Nail / Staple Gun
Brad Nails : 18 gauge 10 - 50mm
Staples : 18 gauge 16 - 40mm / Crown size 5.7mm
Air Inlet : 1/4in. BSP
Operational pressure : 60 - 120psi
Supplied with starter pack

Nail Gun and Stapler
t Click picture for more information
Air Nail Coil Gun

CT4337

Air Nail Coil Gun - CN45

Air Nail Coil Gun with Aluminium Body
400 conical wire welded nails.
200 plastic sheet collated nails.
Adjustable firing mode and depth.
Operating Pressure : 70-120 psi / 5-8.3 bar.
Nail Range Length : 25 - 50mm / Shank 1.59 - 2.1mm.
Weight : 1.60kg / 3.50lbs
Construction Coil Nailer - CN45

Air Nail Coil Gun
t Click picture for more information
Air Nail Coil Gun

CT4338

Air Nail Coil Gun - CN565B

Air Nail Coil Gun with Aluminium Body
250 - 400 conical wire welded nails.
200 plastic sheet collated nails.
Adjustable firing mode and depth.
Operating Pressure : 70 - 120 psi / 5 - 8.3 bar.
Nail Range Length : 45 - 65mm / Shank 2.3 - 2.5mm.
Weight : 2.5kg / 3.5lbs

Air Nail Coil Gun
t Click picture for more information
Air Nail Coil Gun

CT4339

Air Nail Coil Gun - CN70

Air Nail Coil Gun with Aluminium Body
Load Capacity : 225 - 300 nails
Nail Range : 45mm - 70mm Depth
Nail Head diameter : 5.0 - 7.0mm.
Nail shank diameter : 2.3 - 2.9mm.
Nail spacing : 8mm.
Operating Pressure : 70-120 psi / 5 - 8.3 bar
Adjustable firing mode and depth
Weight at 3.67kg / 8.07lbs

Air Nail Coil Gun
t Click picture for more information



Product Search

Search Icon
Section 1 Icon Section 2 Icon Section 3 Icon Section 4 Icon Section 5 Icon Section 6 Icon Section 7 Icon Section 8 Icon Section 9 Icon Section 10 Icon

Cannon Tools Limited   •  20 Station Road,  Rowley Regis,  West Midlands,  B65 0JU,  United Kingdom

 T +44 (0) 121 561 6760
