Section 5.41

Axles, Wheel Bearings & Hubs

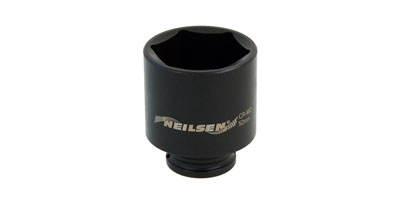

52mm

CT5201

Impact Socket - 52mm / Deep

52mm Impact Socket 1/2in.Dr
for Land Rover Hub Wheel Bearing Nuts
on Land Rover Classic | Discovery | Defender / 83 -
and most other Land Rovers registered after 1970.
6pt Single Hex 1/2'' Drive
Chrome Molybdenum

52mm Deep Impact Socket
t Click picture for more information
Hub

CT5833

Hub Nut Socket Set - 5pc

5pc Socket and Bit Set
1/2in.Dr for VAG Hub Nuts
12 Point Impact Sockets : 24 | 30 | 32mm
Hex Bits : 14mm | 17mm
CRV

Hub Nut Socket Set
t Click picture for more information
Hub

CT1341

Hub Nut Socket Set - 5pc

5pc Hub Nut Socket Set - 1/2in.Dr
Sizes : 30 | 32 | 34 | 35 | 36mm
Chrome Molybdenum for Wheel Hub Nuts

Hub Nut Socket Set
t Click picture for more information
Micro

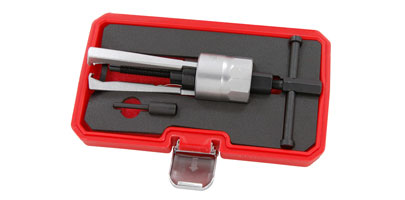

CT5858

Micro Puller 19 - 45mm

Fast Fit Micro Puller 19 - 45mm
Supplied with thrust shaft extension
Capacity : 1 ton
Reach : 73mm
Puller Reach : 19 - 73mm / Min-Max
Puller Spread : 19- 45mm / Min-Max
Designed for the fast and safe removal of small bearings.
Also alternators / generators / domestic appliances / power tools and pumps.
Spring loaded and drop-forged legs are secured around the bearing or gear
by a screw collar to prevent slipping and subsequent damage or injury.

Micro Puller 19 - 45mm
t Click picture for more information
Gear

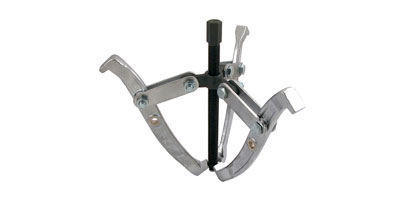

CT3255

Gear Puller - 3 Jaw / 8in.

Gear Puller - 3 Jaw
8in. / 200mm
Reversible Legs

Gear Puller
t Click picture for more information
5

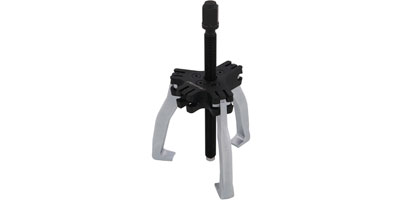

CT4143

Gear Puller - 5 Ton 8in. Legs

5 Ton Gear Puller
with Ratchet Action Legs
for One Man Operation
Capacity : 5in.- 8in. / 125 - 200mm

5 Ton Gear Puller
t Click picture for more information

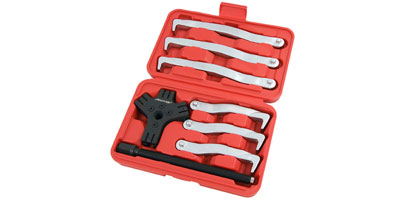

5

CT4144

Gear Puller Set - 5 Ton Short and Long Legs

5 Ton Gear Puller Set
2 and 3 Way Short and Long Legs
Legs now with Ratchet Action
Short Legs : 4in.- 5in. / 100 - 125mm
Long Legs : 5in. - 8in. / 125 - 200mm
Chrome molybdenum -
Legs and Forcing Screw.

5 Ton Gear Puller Set
t Click picture for more information
Gear

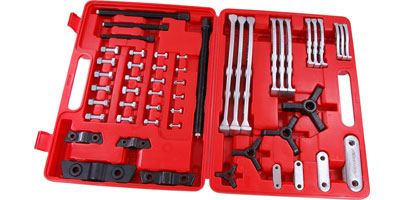

CT3920

Gear Puller Set - 75 to 200mm long

Gear Puller Set
with 2 and 3 Leg variations
Legs 3 | 4 | 6 | 8in. Long
Legs 75 | 100 | 150 | 200mm

Gear Puller Set - 75 to 200mm long
t Click picture for more information

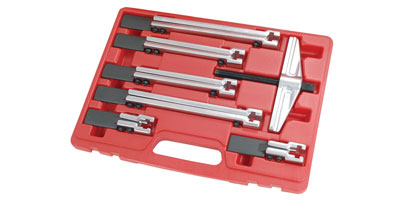

Universal

CT1511

Universal Puller Set

Universal Puller Set
2 Leg / 3 Sizes
Variable Width
Chrome Molybdenum
Legs - 100 / 200 / 250mm Long

Universal Puller Set
t Click picture for more information

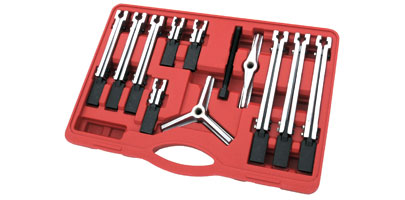

Universal

CT3247

Universal 3 Arm Puller Set

Puller Set - Universal 3 Arm
Puller set with different Leg Lengths for confined spaces
2 Leg Sliding Bar
3 Leg Sliding Bar
Arms - 100 / 200 / 250mm x 3
Spindles - 160 / 270mm Long.

Universal 3 Arm Puller Set
t Click picture for more information

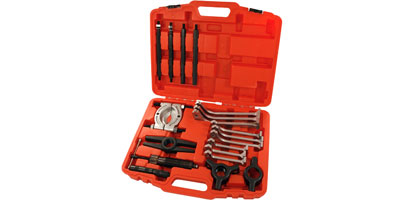

Hydraulic

CT3375

Gear Puller Set

Heavy Duty Hydraulic Puller Set
for removing Gears / Bearings and Sprockets

Hydraulic Puller Set
t Click picture for more information

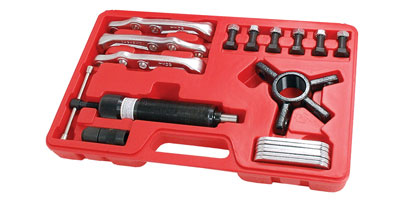

Gear

CT1509

Gear Puller - 5 Ton 6 Way

5 Ton Hydraulic Gear Puller
6 Way 2 and 3 Leg Configuration
Up to 10 Ton Capacity

Gear Puller - 5 Ton 6 Way
t Click picture for more information
Gear

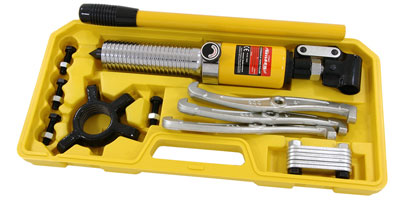

CT5647

Gear Puller - 5 Ton 3 Legs

5 Ton Hydraulic Gear Puller
Maximum Capacity : 5T
Maximum Horizontal Pull Distance : 200mm
Maximum Vertical Pull Distance : 140mm
Axis Stroke : 50mm
Suitable for pulling hubs / flanges / gears and bearings.
Equipped with 3 reversible jaws suitable for different needs.

Gear Puller - 5 Ton 3 Legs
t Click picture for more information

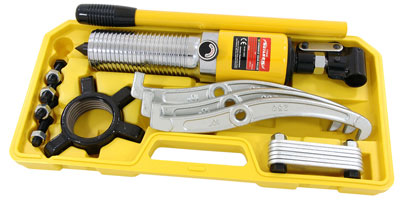

Gear

CT5648

Gear Puller - 10 Ton 3 Legs

10 Ton Hydraulic Gear Puller
Maximum capacity : 10T
Maximum Horizontal Pull Distance : 250mm
Maximum Vertical Pull Distance : 160mm
Axis Stroke : 50mm
Suitable for pulling hubs / flanges / gears and bearings.
Equipped with 3 reversible jaws suitable for different needs.

Gear Puller - 10 Ton 3 Legs
t Click picture for more information
Gear

CT5652

Gear Puller - 30 Ton 3 Legs

30 Ton Hydraulic Gear Puller
Maximum capacity : 30T
Maximum Horizontal Pull Distance : 400mm
Maximum Vertical Pull Distance : 250mm
Axis Stroke : 75mm
Suitable for pulling hubs / flanges / gears and bearings.
Equipped with 3 reversible jaws suitable for different needs.

Gear Puller - 30 Ton 3 Legs
t Click picture for more information
Gear

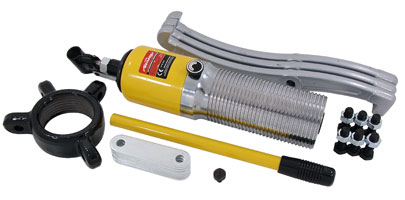

CT5653

Gear Puller - 50 Ton 3 Legs

50 Ton Hydraulic Gear Puller
Maximum capacity : 50T
Maximum Horizontal Pull Distance : 500mm
Maximum Vertical Pull Distance : 400mm
Axis Stroke : 75mm
Suitable for pulling hubs / flanges / gears and bearings.
Equipped with 3 reversible jaws suitable for different needs.

Gear Puller - 50 Ton 3 Legs
t Click picture for more information
Front

CT5622

Axle Lock Nut Socket - MAN / TGA

MAN / TGA Front Axle Lock Nut Socket
3/4in.Dr / 60mm Hex Drive.
Inner diameter : 134mm
Outer diameter : 147mm
Lug diameter : 118mm / width 11mm
Applicable to Man / TGA Front Axle / V982l-01

Front Axle Lock Nut Socket
t Click picture for more information

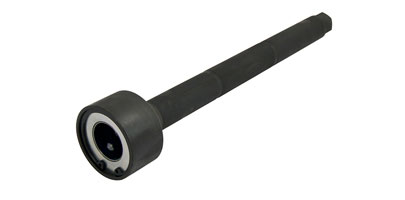

Steering

CT3183

Axle Joint Tool 28-35mm

Steering Arm Removal Tool - 28 / 35mm
Track Rod End Remover
27mm Hex or 1/2in Drive /400mm Long
Suitable for most European vehicles

Steering Arm Removal Tool
t Click picture for more information

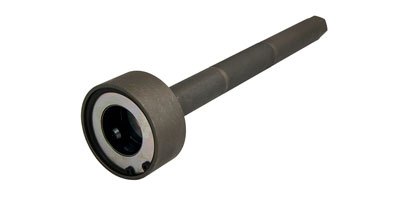

Steering

CT3182

Axle Joint Tool 35-45mm

Steering Arm Removal Tool - 35 / 45mm
Track Rod End Remover
27mm Hex or 1/2in Drive /400mm Long
Suitable for most European vehicles

Steering Arm Removal Tool
t Click picture for more information

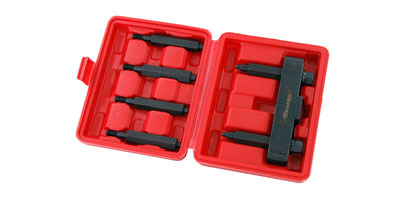

Rear

CT5627

Rear Axle Nut Remove & Installation Kit

Universal Wheel Axle Nut Remove and Installation Kit
Engineered to loosen and tighten the rear wheel nut.
Both sides of pin are adjustable.
3 sets of pins for different vehicles.
For vehicles over 2 tons with circular nuts.
Pins : 5.5 | 6.8 | 9.1mm / Nut : M8 x P1.25

Rear Axle Nut Remove & Install Kit
t Click picture for more information

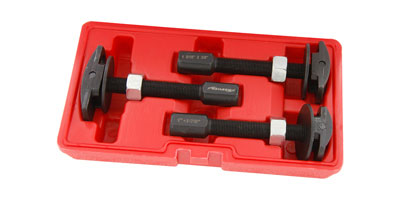

Rear

CT3368

Rear Axle Bearing Puller Set - 3pc

3pc Rear Axle Bearing Puller Set
Sizes : 1in. to 1-7/8in. | 1-5/16in. to 2-3/8in. | 1-3/8in. to 2-7/8in.
Allows for the easy removal of Semi-Floating Rear Axle Bearings
Suitable for most domestic vehicles

Rear Axle Bearing Puller Set
t Click picture for more information

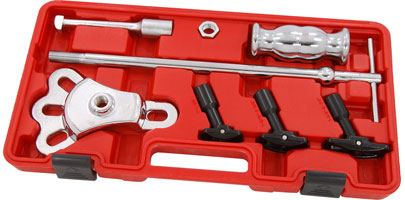

Axle

CT5902

Rear Axle Bearing Puller Set - 8pc

8pc Rear Axle Bearing Puller & Slide Hammer Set
With Small / Medium and Large Bearing Puller Adaptors
cover inner diameters from 1 to 1-7/8 | 1-5/16 to 2-3/8 | 1-3/8 to 2-7/8
respectively to remove semi-floating rear axle bearings.
Safely repair rear axle problems on the majority of domestic cars and light trucks.

Axle Bearing Puller Set with Slide Hammer
t Click picture for more information
Rear

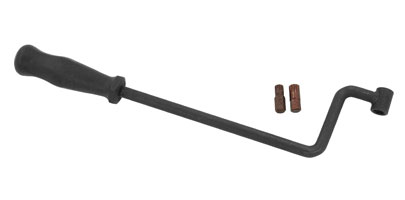

CT6448

Rear Axle Tool Set

3pc Rear Axle Tool Set for Mercedes-Benz
with Spline Bits : M10 | M12
For making tracking adjustments to the rear axle on
Mercedes-Benz vehicles without removing the plastic covers.
Double angled shaft to access hard to reach adjustment screws.
Suitable for Mercedes-Benz C-Class / W203 and S-Class
and older models with under body panels and vehicles with level sensors.

Rear Axle Tool Set
t Click picture for more information
Rear

CT4762

Rear Axle Locking Nut Spanner

Rear Axle Locking Nut Spanner
For loosening and tightening the wheel bearing grooved lock nut
when replacing wheel bearings on rear axle shafts or full floating axles.
Applicable to : Mercedes Sprinter / W901 - W905 rear axles.
Can be used with a 1/2in.Dr Ratchet or Power Bar.

Rear Axle Locking Nut Spanner
t Click picture for more information
Rear

CT5896

Rear Axle Locking Nut Spanner

Rear Axle Locking Nut Spanner
For removing and replacing the wheel bearing grooved lock nut
when replacing wheel bearings on rear axle shafts or full floating axles.
Applicable to : Mercedes Sprinter / W901 - W905 rear axles.
Can be used with a 1/2in.Dr Ratchet or Power Bar.

Rear Axle Locking Nut Spanner
t Click picture for more information
Mercedes

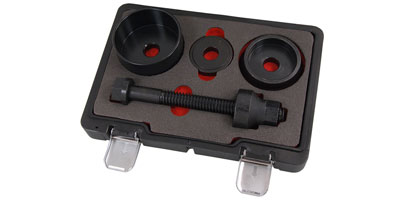

CT4627

Mercedes Rear Wheel Bearing Service Set

4pc Rear Wheel Bearing Service Set
For removing / installing the rear wheel bearing and rear axle flange on
Mercedes vehicles : W124 | W129 | W201 W202

Mercedes Rear Wheel Bearing Service Set
t Click picture for more information

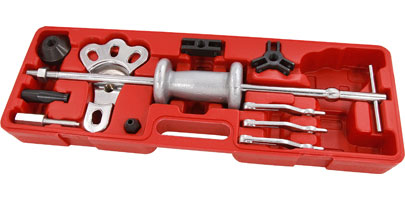

Slide

CT1054

Slide Hammer Set - 16pc

16pc Slide Hammer / Puller Set
Combination Puller with 5lb Malleable Steel Slide Hammer
Drop Forged Steel Pullers and Attachments
Converts to 2 or 3 Jaw Internal / External Pullers

Slide Hammer / Puller Set
t Click picture for more information
Mini

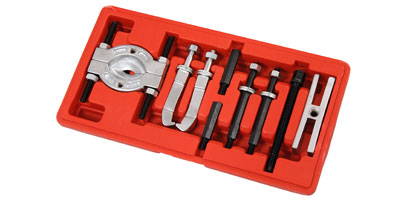

CT0555

Bearing Puller Set

9pc Mini Bearing Separator Set
Compact set containing
Bearing Separator and 2 Leg Puller
Suitable for removing small gears
wheels and shaft fittings.
Separator : 15 - 58mm
Puller Jaw : 50mm

Mini Bearing Separator Set
t Click picture for more information

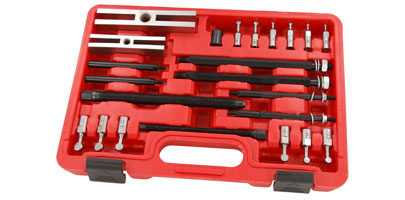

Ball

CT6293

Bearing Puller Set

Bearing Puller Kit with Ball Ended Puller Adaptor
Suitable for removal of a variety of blind bearings
where traditional bearing and gear pullers will not reach.
Ball-end tips fit inside bearing races to provide traction for bearing extraction.
Bearing Sizes : 5 / 6 / 8 / 9 / 11 / 12.5mm

Ball End Bearing Puller Kit
t Click picture for more information
Small

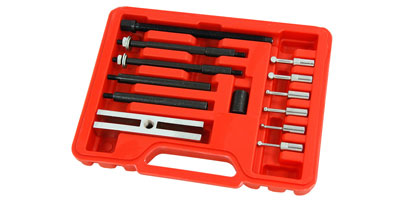

CT4061

Bearing Puller Set

Small Insert Bearing Puller Kit
For the removal of bearings where other pullers are unable to be used
by locking into the bearing race itself.
Adjustment range : 20 - 90mm
Interchangeable heads : 5.5 / 6.0 and 8.0mm diameter
Puller yoke and Forcing screw
2 Legs and Extensions
Centre screw thread cap
6 Ball ended threaded puller adaptors

Small Insert Bearing Puller Kit
t Click picture for more information

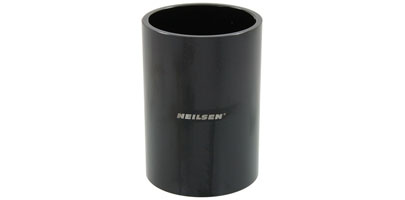

Press

CT5919

Press Support Ring - Small

Small Universal Press Support Ring
Outer diameter : 115mm
Inner diameter : 100mm
Height : 160mm
Wall : 7.5mm
Capacity : 10T
for the removal of Wheel Bearings / Bushings and Hubs
Usually working in combination with a hydraulic press.
Great alternative to traditional V blocks and old bearing casings.
Can be used with Universal press support blocks / not included.

Press Support Ring - Small
t Click picture for more information
Press

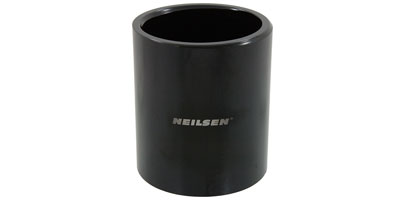

CT5918

Press Support Ring - Medium

Medium Universal Press Support Ring
Outer diameter : 140mm
Inner diameter : 120mm
Height : 160mm
Wall : 10mm
Capacity : 40T
for the removal of Wheel Bearings / Bushings and Hubs
Usually working in combination with a hydraulic press.
Great alternative to traditional V blocks and old bearing casings.
Can be used with Universal press support blocks / not included.

Press Support Ring - Medium
t Click picture for more information
Press

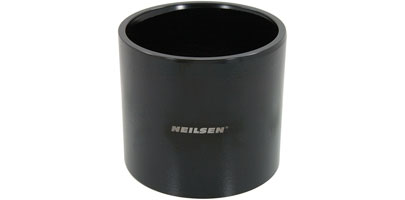

CT5917

Press Support Ring - Large

Large Universal Press Support Ring
Outer diameter : 180mm
Inner diameter : 160mm
Height : 160mm
Wall : 10mm
Capacity : 40T
for the removal of Wheel Bearings / Bushings and Hubs
Usually working in combination with a hydraulic press.
Great alternative to traditional V blocks and old bearing casings.
Can be used with Universal press support blocks / not included.

Press Support Ring - Large
t Click picture for more information
Press

CT5920

Press Support Ring Set

3pc Universal Press Support Ring Set
Diameters : 115mm / 100mm | H : 160mm | W : 7.5mm | Cap :10T
Diameters : 140mm / 120mm | H: 160mm | W : 10mm | Cap : 40T
Diameters : 180mm / 160mm | H: 160mm | W: 10mm | Cap : 40T
for the removal of Wheel Bearings / Bushings and Hubs
Usually working in combination with a hydraulic press.
Great alternative to traditional V blocks and old bearing casings.
Can be used with Universal press support blocks / not included.

Press Support Ring Set
t Click picture for more information
Master

CT3757

Universal Press and Pull Sleeve Kit

30pc Master Press and Pull Sleeve Kit
For the installation of bushes / bearings and seals
For both cars and light commercial vans.
Inside Diameters 34 - 72mm in 2mm steps
Outside Diameters 44 - 82mm in 2mm steps
Pulling Spindles M10 . M12 . M14 . M16.

Master Press and Pull Sleeve Kit
t Click picture for more information
Universal

CT3187

Press and Pull Sleeve Set

26pc Universal Press and Pull Sleeve Kit
For the removal and installation of bushes / bearings and seals etc.
22 x Press Sleeves inside diameter from 34-80mm in 2mm steps
Outside diameter from 44-90mm in 2mm steps
M10. M12. M14. M16 Pulling Spindles

Universal Press and Pull Sleeve Kit
t Click picture for more information
Universal

CT2934

Press and Pull Sleeve Set

Universal Press and Pull Sleeve Kit
Press Sleeves from 34 - 80mm Diameter in 2mm steps
Outside Diameter from 44 - 90mm in 2mm steps
5 x Pulling Spindles with nuts and thrust bearings
M10 | M12 | M14 M16 | M18

Universal Press and Pull Sleeve Kit
t Click picture for more information
Pulling

CT2934-1

Pulling Spindle

Replacement M10 Pulling Spindle
for Universal Press and Pull Sleeve Kits CT2934 or CT3187 or CT3757

Pulling Spindle
t Click picture for more information
Pulling

CT2934-2

Pulling Spindle

Replacement M12 Pulling Spindle
for Universal Press and Pull Sleeve Kits CT2934 or CT3187 or CT3757

Pulling Spindle
t Click picture for more information
Pulling

CT2934-3

Pulling Spindle

Replacement M14 Pulling Spindle
for Universal Press and Pull Sleeve Kits CT2934 or CT3187 or CT3757

Pulling Spindle
t Click picture for more information
Pulling

CT2934-4

Pulling Spindle

Replacement M16 Pulling Spindle
for Universal Press and Pull Sleeve Kits CT2934 or CT3187 or CT3757

Pulling Spindle
t Click picture for more information
Pulling

CT2934-5

Pulling Spindle

Replacement M18 Pulling Spindle
for Universal Press and Pull Sleeve Kit CT2934

Pulling Spindle
t Click picture for more information
Universal

CT2758

Universal Bearing Packer

Universal Bearing Packer
111mm Cone Diameter.
Suitable for packing bearings with an even spread of Grease.
A Clean and Quick method - place bearing on to the bottom cone
screw down the cone lid and pump grease into nipple.
Works on most tapered roller bearings found on cars / boats and trailers.
Knurled grips for oily fingers.

Universal Wheel Bearing Packer
t Click picture for more information
Universal

CT6402

Wheel Bearing Spreader

Universal Wheel Bearing Spreader
Designed to separate the suspension strut from the wheel bearing housing.
Spreading range : 5.0 - 11.5mm
Drive : 17mm Hex

Universal Wheel Bearing Spreader
t Click picture for more information
Bearing

CT3960

Bearing Race and Seal Driver

Master Bearing Race and Seal Driver
Aluminium all in one self contained precision driver with rotating handle and expanding jaws to seat races / bearings or seals with ease.
Variable Jaws cover a range of 18.5 - 89mm or 0.72 - 3.50in.

Bearing Race and Seal Driver
t Click picture for more information
Bearing

CT3253

Bearing Seal Driver Set

Bearing Race and Seal Driver Set - 7pc

Bearing Seal Driver Set
t Click picture for more information
Bearing

CT1243

Bearing and Seal Driver Set

11pc Bearing and Seal Driver Set
For the Installation of Bearings and Seals
Drive Flanges : 39.5 | 44.5 | 50 | 59 | 63 | 65 | 72 | 76 | 81mm
with Aluminium Mandrel Driver

Bearing and Seal Driver Set
t Click picture for more information
Wheel

CT3777

Wheel Bearing and Seal Installation Kit

21pc Wheel Bearing and Seal Installation Kit
Suitable for mounting bearings and sealing rings.
Particularly useful when used with a hydraulic press.
Kit includes 17 mounting pads 70 to 150mm diameter in 5mm steps.
273mm handle for use with a hammer.

Wheel Bearing and Seal Installation Kit
t Click picture for more information
Wheel

CT3572

Wheel Bearing Installation Kit

Wheel Bearing and Seal Installation Kit
New lightweight design to prevent damaging the bearing or housing.
Contains 3 metal bearing drift sleeves
and 34 nylon drifts with Deadblow Hammer.
Can also be used to install oil seals.
Fits most modern vehicles

Wheel Bearing Installation Kit
t Click picture for more information
Bearing

CT3948

Bearing and Bushing Seal Driver Set- 51pc

51pc Bearing and Bushing Seal Master Driver Set
Suitable for mounting bearings | bushings and sealing rings.
220mm knurled handle grip for use with a hammer.
Particularly useful when used with a hydraulic press.
Support Disc - 74 mm |

Bearing / Bushing and Seal Driver Set
t Click picture for more information



Next Last

Product Search

Search Icon
Section 1 Icon Section 2 Icon Section 3 Icon Section 4 Icon Section 5 Icon Section 6 Icon Section 7 Icon Section 8 Icon Section 9 Icon Section 10 Icon

Cannon Tools Limited   •  20 Station Road,  Rowley Regis,  West Midlands,  B65 0JU,  United Kingdom

 T +44 (0) 121 561 6760
