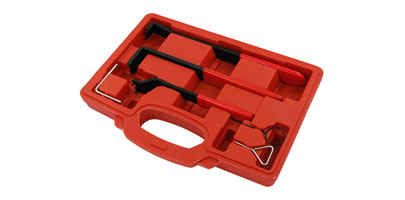

VAG Timing Tool Set
Tensioner Adjuster Set
for VAG Timing Belts
Set contains three specialised wrenches and pins
required to access the timing belt tensioners
fitted to a wide range of VAG petrol and diesel engines.

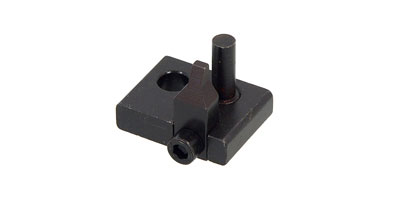

VAG 3.6 FSi Injection Pump Sprocket Retaining Tool
VAG 3.6L FSi Injection Pump Sprocket Retaining Tool
For holding the high pressure pump in place when adjusting valve timing.
Suitable for VAG 3.6L / 6 cylinder / 4 valve engines.
VW Passat - 357 / 3C2 / 3C5 starting from 2006
VW Touareg - 7L6 / 7LA starting from 2006
Audi Q7 - 4LB starting from 2007

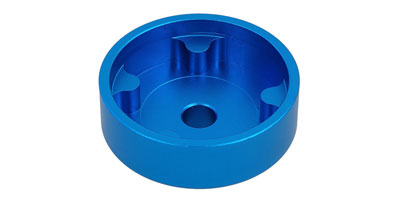

VAG Timing Chain Clamping Tool
for 4.2 V8 FSi Engines
Required for tensioning the timing chain
when working on the camshaft adjuster and other engine repairs.
For 4.2 litre FSi engines with 8 cylinders and direct injection.

VAG Timing Tool Set
Audi A4 / A6 / A8 / Q5 - 2.0 | 2.8 | 3.0 | 3.2 V6 TFSI Engines
For alignment and adjustment of camshafts
and the replacement of timing chains etc.
Also re-setting engine timing when replacing the cylinder head gasket.

VAG Timing Tool Set
Audi A4 / A6 / A8 - 2.5 | 3.2 | 4.2 V6 FSI Engines
For alignment and adjustment of camshafts
and the replacement of timing chains etc.
Also re-setting engine timing when replacing the cylinder head gasket

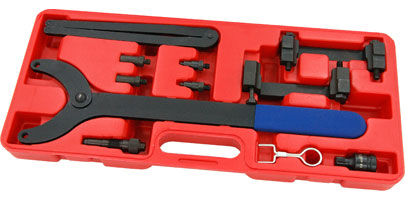

VAG Timing Tool Set
for 1.8 / 2.0 FSI | TSI | TFSI Petrol Engines.
Camshaft Locking Block
Camshaft Aduster Sockets - 3/8in.Dr
Belt Tension Adjuster
Locking Pins
Pin Wrench
Tensioner Bolt.
For 2.0 FSI petrol engines 2003 onwards.

VAG Timing Tool Set
for 1.0 / 1.2 / 1.4 - MPI / TSI Petrol Engines
Suitable for 3 and Cylinder Engines.
Crankshaft Locking Bolt
Camshaft Adjusting Plate
Camshaft Sprocket Locking Tool
Tensioner Adjusting Wrench
Camshaft Adjusting Plate
Assembly Tool

VAG Timing Tool Set
for 1.2 / 1.4 TSI Petrol Engines
Essential tools for camshaft locking
crankshaft replacement and timing belt replacement
on VAG belt drive petrol engines including the 1.4 TSI ACT.
Applicable to Audi A1 | A3.
Seat lbiza | Leon | Toledo
Scoda Fabia and Octavia

VAG Timing Tool Set
for 1.0 / 1.2 / 1.4 TSI | TFSI EA211 Petrol Engines
1.2 TFSI : CJZA | CJZB
1.4 TFSI : CMBA | CXSA | CHPA
1.4 TGI : CPWA
1.4 TSI : Multi Fuel CPVA
1.4 Hybrid CRJA

VAG Camshaft Drive Tensioner Wrench
For adjusting the Camshaft drive belt tensioner on
VAG Vehicles with 1.0 / 1.2 / 1.4 turbo charged engines.
Applicable to :
Audi - A1 / A3
Seat - Mii / Leon
Skoda - Octavia / Citigo
Vo

VAG Timing Tool Set
for VAG 1.4 TFSI and 1.6 FSI Petrol Engines
To check and adjust camshaft timing
required when replacing timing chains.
With Camshaft Locking Tool
and Setting Gauge Holder.

VAG Timing Tools
for 1.2 TSI / TFSI Petrol Engines
Camshaft and Crankshaft Locking / Setting Tools
For adjusting the timing and replacement of the timing chain
or renewing the cylinder head gasket.
For Volkswagen 1.2 TSI / TFSI engines in -
Audi - Al | A3
VW - Beetle / Caddy / Golf / Jetta / Polo / Touran

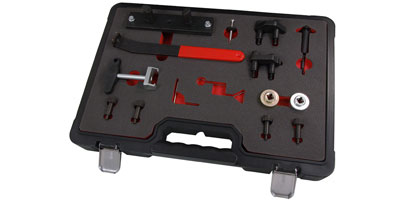

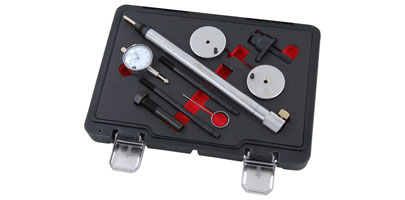

VAG Timing Tool Set
for 1.2 / 1.4 / 1.6 FSI | TSI | TFSI Petrol Engines
on the VAG range of vehicles from 2003 to 2015.
Set Includes :
Dial Test Indicator and adaptor for an accurate TDC.
Crankshaft Locking Pin
Camshaft Locking and Alignment Tools
Gauge / Tension and Alignment Pins

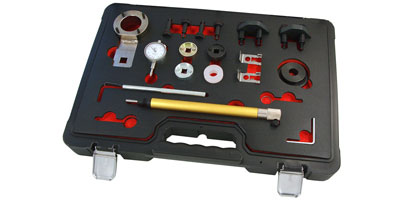

VAG Timing Tool Set
for 1.8 / 2.0 TSI / TFSI 4-cylinder Petrol Engines.
For correcting camshaft and crankshaft timing position.
Applicable to :
the EA888 Series Engine on -
1.8 R4 16V TSI / TFSI
2.0 R4 16V TSI / TFSI

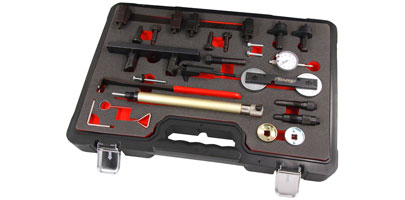

VAG Timing Tool Set
for 1.2 / 1.4 / 1.6 / 2.0 / 2.4 / 3.2 FSI / TFSI Petrol Engines
Allows the installation and removal of the camshaft / timing belt
when checking and adjusting the camshaft timing.
Cam Belt / Chain Locking Pins
Camshaft Alignment / Locking Tools
Crankshaft Alignment & Locking Pins
Dial Gauge and TDC Indicator
Tensioner / Pulley Bolt & Locking Pins
Timing Belt Spanner Wrench

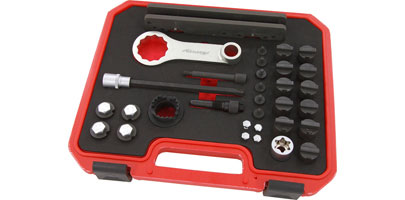

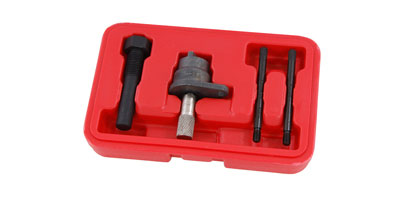

VAG Timing Tool Set
for 1.8 / 2.0 TFSI Chain Drive Petrol Engines
Essential tools required to remove the camshaft adjuster valves
and a useful crankshaft pulley holding tool.
Some applications and repair operations will require additional tools.
Applicable to : Audi | Seat | Skoda | VW

VAG Timing Tool Set
for 2.9 / 3.0 TFSI EA839 Petrol Engines
Designed to fix the camshafts in position
when removing and installing the camshaft timing chains.
Applicable to : Audi / Porsche / VW - 2016 onwards.
OEM numbers : T40331 | T90000 | T90001 | T90002.

VAG Timing Chain Tension Lever
for 1.8 / 2.0 TFSi Petrol Engines
Allows the timing chain tensioner to be retracted and locked
without removing the lower timing cover.
Applicable to TFSI engines from 2007 onwards
on Audi / Seat / Skoda / Volkswagen models.
OEM Code : T40243

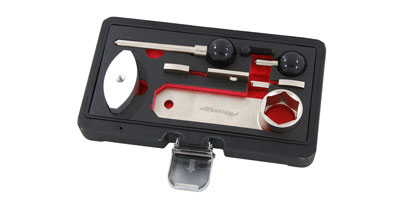

VAG Timing Tool Set
for Porsche 911 Engines
for checking and adjusting timing on Porsche 911 - 996 / 997.
Camshaft Holding Tool for engine M96 / 03.
Camshaft Locking Tool for engines M96 / 03 and M97 / 01.
Locking Pins for engines M96 / 03 and M97 / 01.

VAG Timing Tool Set
for 2.5 / 2.7 / 3.2 / 3.4 / 3.6 Porsche 911 / Boxster Engines
Allows engine timing when performing valve-train service.
With - TDC Alignment Pin
Camshaft Lock & Alignment Tools
Camshaft Holding Tools
Connecting Rod Centring Mandrel
Piston Pin Driver and Extensions
Porsche Boxster : 2.5 / 2.7 / 3.2 - 986 / 987 1998 - 2000
Porsche 911 : 3.4 / 3.6 - 996 / 997 2002 onwards

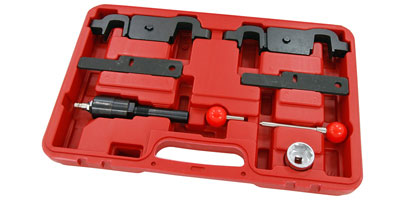

VAG Timing Tool Set
for Porsche Cayenne and Panamera V8 Engines
Also Porsche Cayenne utilizing the M97/01 V8 engine.
For camshaft timing on Direct Fuel Injection /
Turbo and Normally-aspirated Engines
Allows TDC Timing during servicing the
Camshafts / Cylinder Head / Timing Chain
or Variable Valve-timing Cam Phasers.
Cayenne V8 up to 2007 and Cayenne and Panamera 2008 onwards

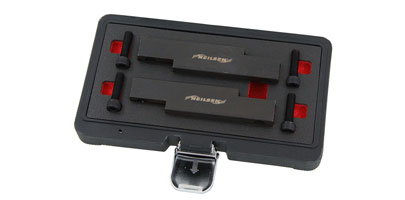

VAG Timing Tool Set
for Porsche Macan 3.0S / 3.6 Turbo Engines
For changing the timing chain
or replacing the cylinder head gasket.
Engine codes : MCT.M / MCT.L
Ideal for use with Porsche Cayenne Timing Kit - CT3767
OEM Code : 9861
